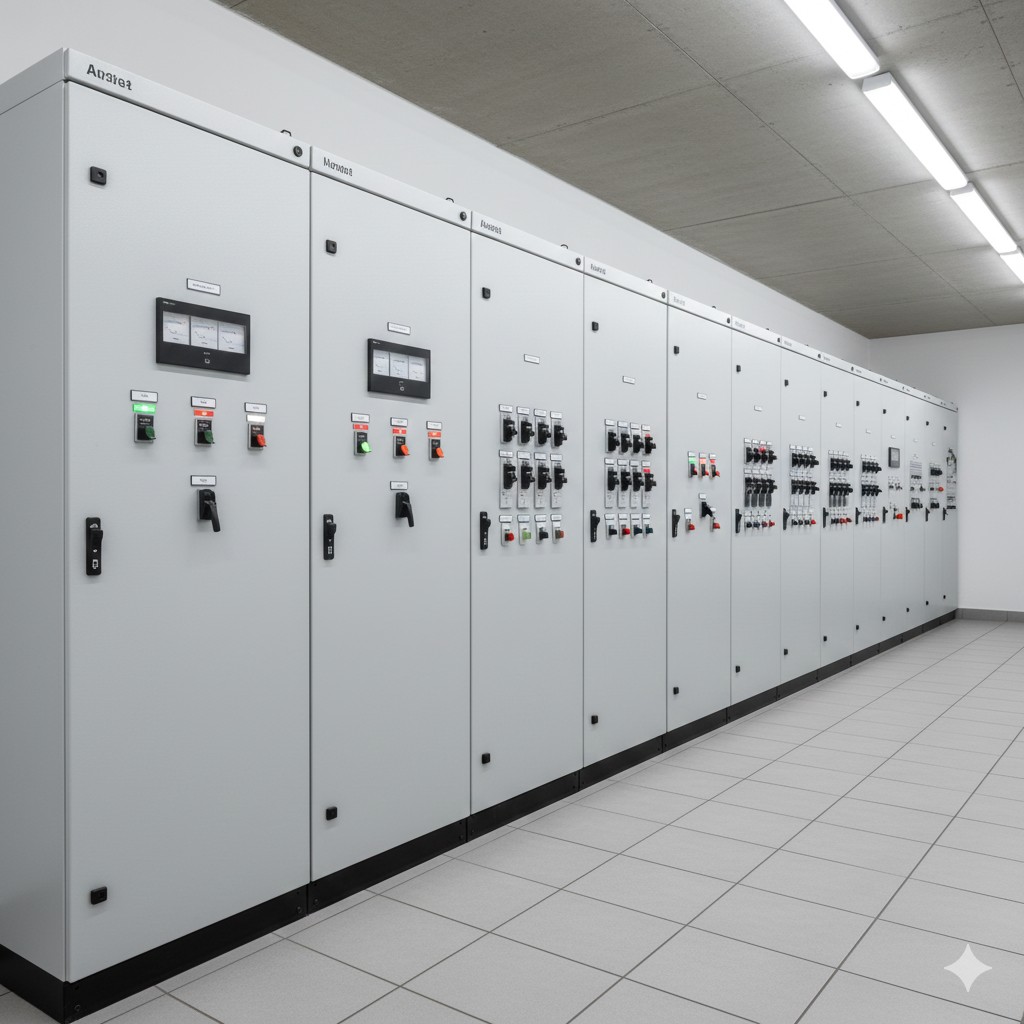

PCC & MCC Panels
Low-voltage Power Control and Motor Control Centers engineered with modular design for high-demand industrial switchgear.
Compliant
ZEESHANElectrical & Contractors
ISO 9001:2015 • CPRI Tested
Industrial
Switchgear.
Engineering the nerve centers of industrial infrastructure. We designhigh-performance panelsguaranteeing safety and zero-downtime reliability.
Up to 6300A
Current Rating
Heavy-duty busbar arrangements for industrial loads.
Type-2
Coordination
Protection logic ensuring minimal component stress.
IP55 Rated
Enclosure
Dust and water-tight solutions for harsh environments.
Engineering Standards
Technical
Capabilities.
From design to deployment, our systems are built to exceed international safety and efficiency protocols, ensuring zero-downtime performance.
APFC Solutions
Intelligent Power Factor Correction utilizing high-linearity reactors and capacitor banks to eliminate reactive power penalties.
Compliant
CPRI Type-Tested
Certified short-circuit withstand and IP-rating compliance. Every panel undergoes dielectric and sequence testing.
Compliant
Site Commissioning
Full-cycle integration support: from busbar torque verification to primary injection testing and load synchronization.
Compliant
Engineering Excellence
Built for
Resilience.
Our panels aren't just boxes; they are custom-architected solutions. Whether it's an APFC panel or a Main Distribution Board, we prioritize thermal management and component longevity.
- IP54 & IP55 Rated Enclosures
- Standardized Busbar Arrangements
- Integrated Surge Protection (SPD)
GA-DRAWING_V2.0
Main Incomer
Busbar Chamber
Feeder 01
Feeder 02
Feeder 03
Feeder 04
Feeder 05
Cable Alley
Precision
±0.5mm
Validated
Thermal
Standard Compliance
Technical Specifications
ParameterSystem Voltage
Rating415V, 3-Ph, 4-W
ParameterRated Frequency
Rating50 Hz (±5%)
ParameterShort Circuit
RatingUp to 50kA (1s)
ParameterProtection Class
RatingIP42 to IP55
ParameterBusbar Material
RatingAl. / Cu. Grade
ParameterEnclosure Steel
RatingCRCA (1.6 - 2mm)
ParameterSeparation
RatingForm 3b / 4b
ParameterStandards
RatingIS 8623 / IEC 61439
Design verified per project load analysis
*Custom technical configurations available for specific site requirements.
Quality Standards
The Integration Stack
Strategic utilization of high-tier components for operational stability.
Schneider
Tier-1
Global Automation
ABB
Tier-1
Power Systems
Havells
Tier-1
Regional Leader
L&T
Tier-1
Control Gear
Siemens
Tier-1
Grid Intelligence
Legrand
Tier-1
Distribution
OEM Integration Integrity
Verified Supply Chain • Quality Controlled
Technical Design & Consultation
Ready to Engineer
Your Infrastructure?
Submit your Single Line Diagram (SLD) or load requirements for a detailed technical appraisal.
Average Response Time: 24-48 Hours
